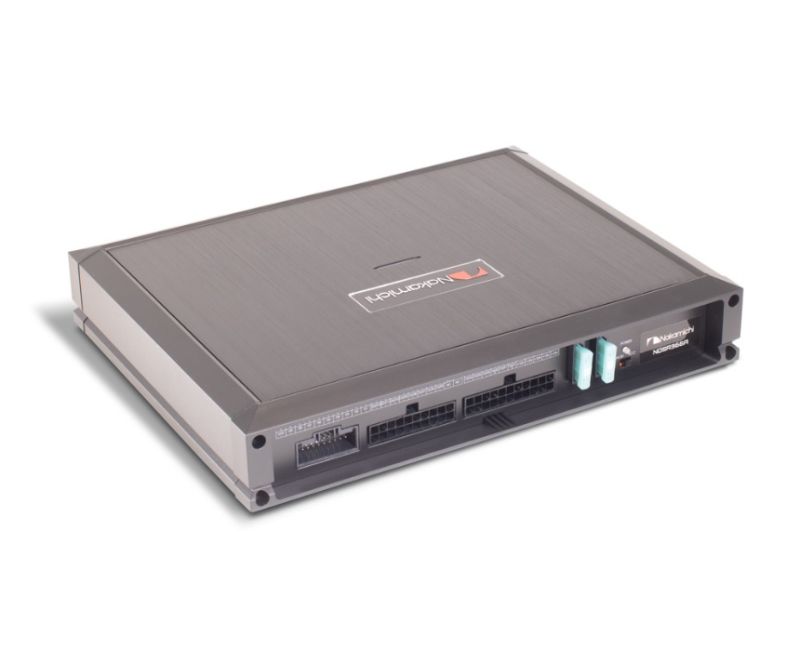

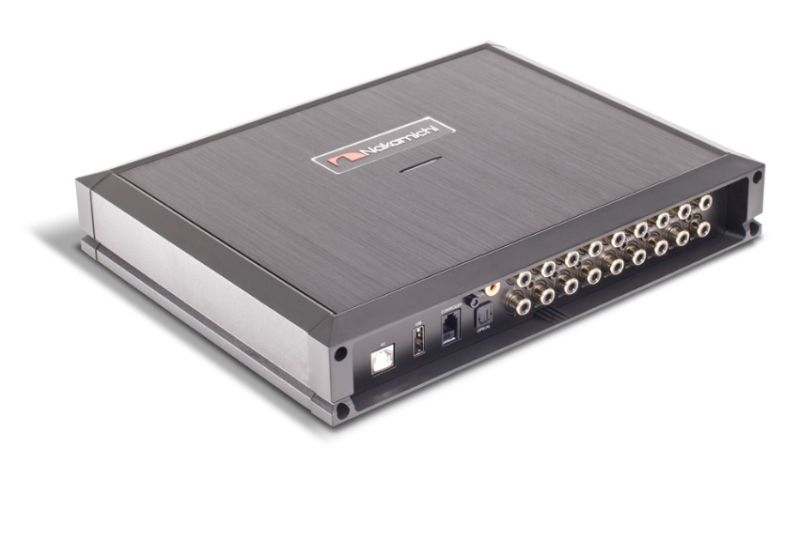

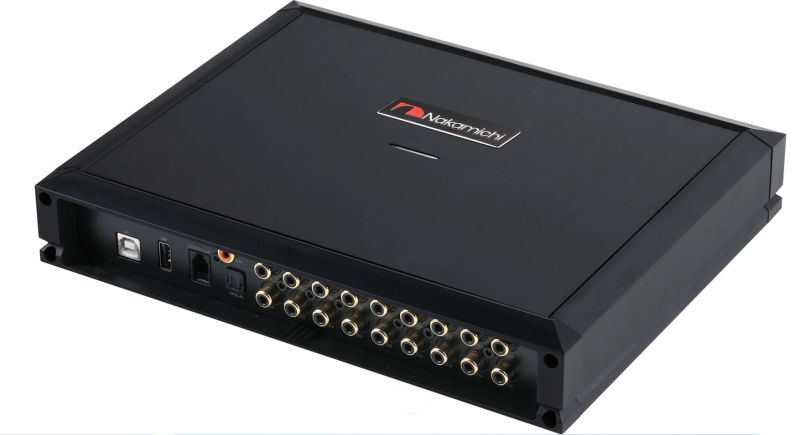

Amplificator cu DSP Nakamichi NDSR366A, 12 canale amplificate, 16 x preout ,Bluetooth, Total 1280W maxim
Preț
3,000 Lei
-
Cod:NDSR366
-
Greutate:0.200 Kg
Informații despre produs
| Dynamic Range(RCA Input) | ≥100dB |
| S/N(RCA Input) | ≥98dB |
| Frequency Response | 20Hz~40KHz |
| Input Impedance | High Level Input:51Ω |
| Low level Output Impedeance | 51Ω |
| Signal Input Range | RCA Input:7.5Vpp;High Level:26Vpp |
| Signal Output Range | RCA Output:8Vpp;Amplifier Maximum Power:8x80W+4x160W,Bridging1x300W |
| Power | DC9V-15V |
| REM Input | High Level Input Signal:H3+/H3-or ACC control cable |
| REM Output | +12V Startup Voltage Output |
| Standby Power | ≤0.1W |
| Gross Weight | Approx. 2.51kg |
| Box Dimension(L×H×W) | 255×175×47mm |
Informații tehnice
| Input Signal Type | 10 Channels high level,2 Channels Low Level, Internal/external Bluetooth,Optical Coaxial |
| Output Type | 16 Channels Low level,8x80W+4x160W,Bridging1x300W |
| Output Gain | Gain range:Mute,-59.9dB~0.0dB |
| Output Signal EQ |
31 Band Equalizer Engine: |
| Output Signal Crossover | Each output is equipped with multi-order high and low pass independent fiters. 1.Filter type:Link-Rill,Butter-W, Bessel 2.Filtering Frequency Division Point: 20Hz~40kHz, Resolution 1Hz 3.Filter Slope setting:6dB/Oct ~ 48dB/Oct and OFF |
| Output Phase and Time Alignment |
Each output channel can be adjusted for phase and delay,parameter range:
|
-
Marca:1.Universal
-
Model:1.Universal > 1.Universal
-
Clasa:AB
-
Impedanță:2-4 Ω
-
Număr canale:12
-
Putere canal (w):70-100
-
Utilizare:full range+subwoofer
-
Procesare DSP:Da
